PM8AIB - 8 Current/Voltage Input Module

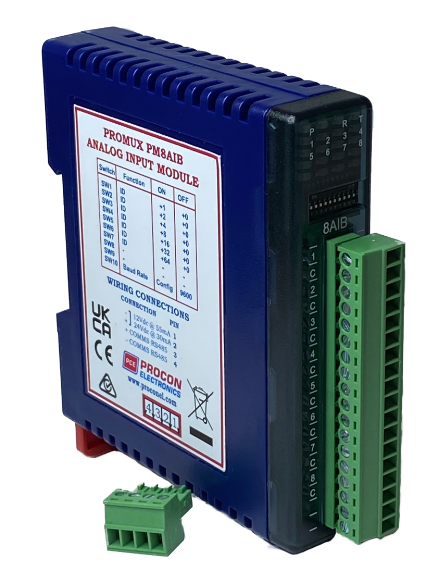

The PM8AIB module is a fast voltage or current input module with 16bits resolution. The Analog Inputs can be configured as either a current input or a voltage input using DIP switches. The inputs are isolated from the logic and share a common negative terminal.

The PM8AIB can be configured for 0-10V, +/-10V or +/-5V input measurement or 0-20mA, 4-20mA or +/-20mA measurement.

The module can also be configured to display in 16bit binary format (0 to 65535 or -32768 to 32767) or engineering units, for example (+/-10.000 volts or 0 to 20.000mA)

PM8AIB_Mod

Analog Inputs

8

Type

Single Ended

Current/Volts

0-20mAdc/0-10Vdc

Offset by switch

4mA/2V

Resolution

16 bit

Sample rate

100 samples/sec

Input Impedance Current

250 Ohms

Input Impedance Volts

1 Mohm

Drift

20 ppm/deg.C typ.

Accuracy

0.1 % of span

Isolation (Field & Logic)

1000VAC RMS

PM8AIB - 8 Current/Voltage Input Module

Order Code

PM8AIB - PROMUX 8 Current/Voltage Input Module
